OM TECHNO ENGINEERS manufacture cable trays in the following thicknesses - 1.2 mm, 1.5 mm, 1.6 mm, 2.0 mm, 2.5 mm, and 3.0 mm. & width - 50 mm to 1000 mm, cable trays are available in different finishes like MS, Hot dip galvanized, powder coated, painted etc. The cable tray accessories for perforated ladder type cable trays are vertical bends, horizontal bends, inside bends, outside bends, reducers with radius 300, 600, 900 are available.

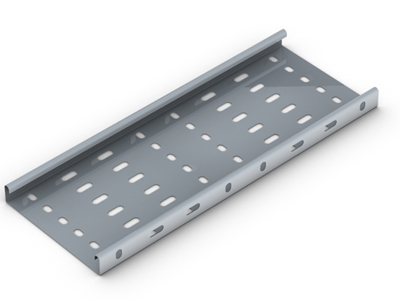

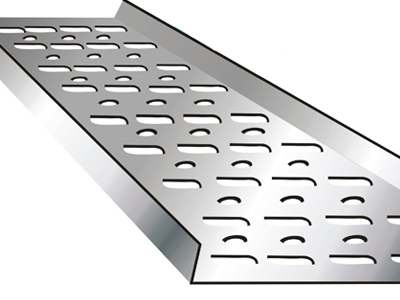

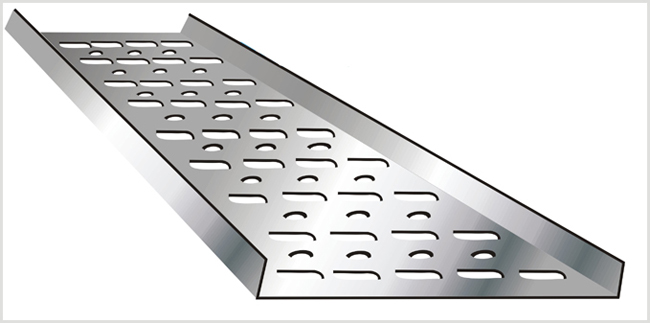

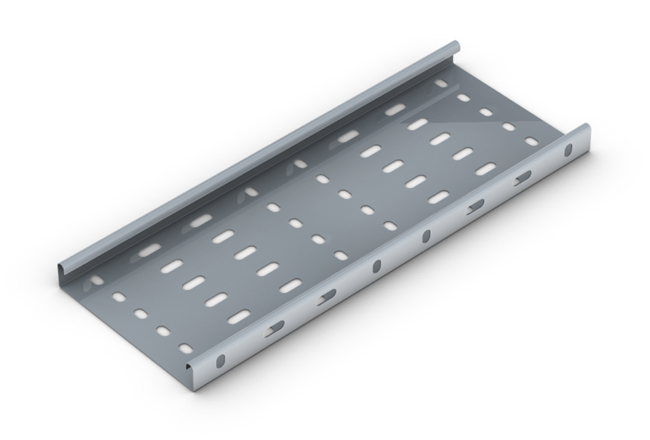

Cable Tray - Perforated Type
Cable Tray - Perforated Type are ideal to install large volume of Heavy duty power cables. Perforation make full free air rating of cable ,Higher current flow can be achieved at the same cross section , Overheating and consecutive damaging of cable is avoided ,coupler holes in side guarantees easy connecting of cable trays to each other ,Cable trays can be manufactured in Hot Dip Galvanized Finish(Galvanizing As Per Is-2626),Pre-Galvanized Finish(Material As Per Is-277),Powder Coating Finish(Powder Coating As Per Is-101),Stainless Steel Grade-As Per 316 , 304 & In Aluminium-Commercial Grade Finish.
Height of cable trays is varies from 25,35,50,70,75,100 & 125 mm , Width of cable trays is varies from 100 to 1000 mm ,Thickness of cable trays ranging from 10,12,14,16,18 SWG, i.e 3,2.5,2,1.6,1.2 mm

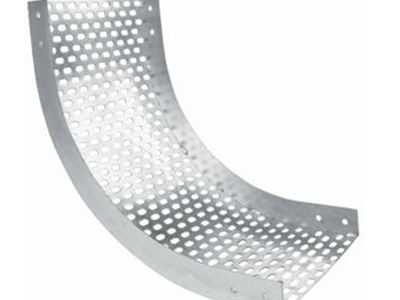

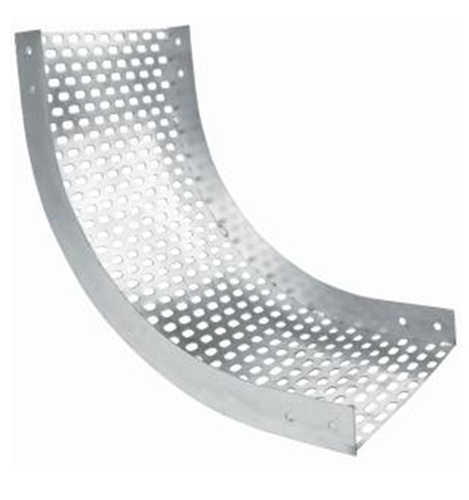

Vertical Bend
Vertical Bend Inside - Perforated Type Are Mainly Used In Combination With Perforated Type Of Cable Trays To Route The Cable Where The The Direction Changes To A Different Plane.
Height Of Vertical Bend Inside - Perforated Type Is Varies From 25, 35,50,70,75,100& 125 Mm , Width Of Vertical Bend Inside - Perforated Type Is Varies From 100 To 1000 Mm of
Thickness OfVertical Bend Inside - Perforated Type Ranging From 10,12,14,16,18 Swg, I.E 3,2.5,2,1.6,1.2 Mm

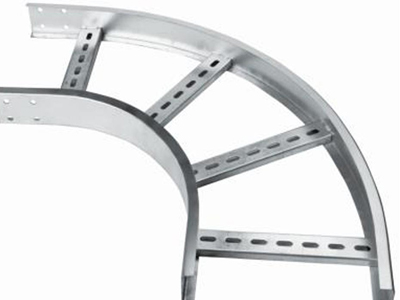

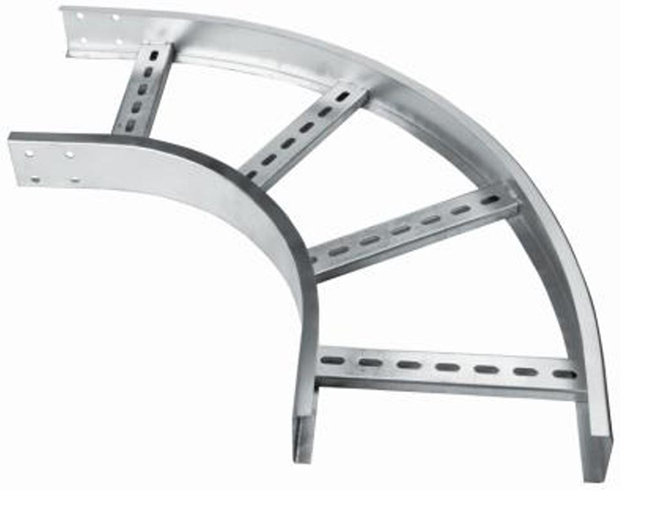

Horizontal Bend
Horizontal Bend - Perforated Type, are mainly use in combination with perforated type of cable trays to route the cables in 90 degree where two wall are conjoining, our product design allows the cable to route properly and chamfer of bend take care of cable not to Worn out, Peel off or Get damage while laying of cables,can Be Manufactured In Hot Dip Galvanized Finish(Galvanizing As Per Is-2626),Pre-Galvanized Finish(Material As Per Is-277),Powder Coating Finish(Powder Coating As Per Is-101),Stainless Steel Grade-As Per 316 , 304 & In Aluminium-Commercial Grade Finish.Height Of Horizontal Bend - Perforated Type Is Varies From 25,35,50,70,75,100 & 125 Mm , Width Of Horizontal Bend - Perforated Type Is Varies From 100 To 1000 Mm ,Thickness Of Horizontal Bend - Perforated Type Ranging From 10,12,14,16,18 Swg, I.E 3,2.5,2,1.6,1.2 Mm

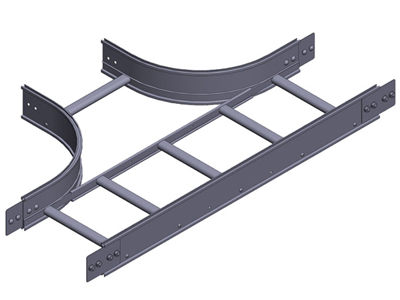

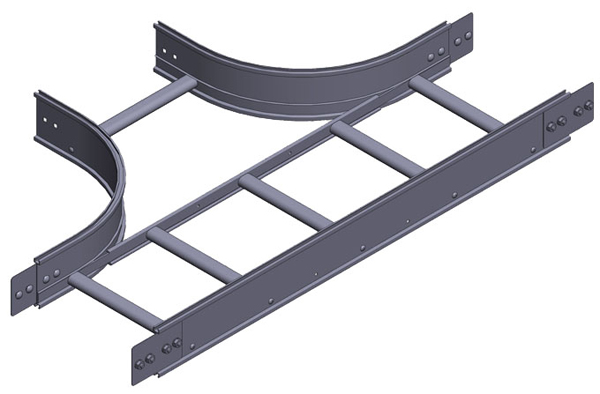

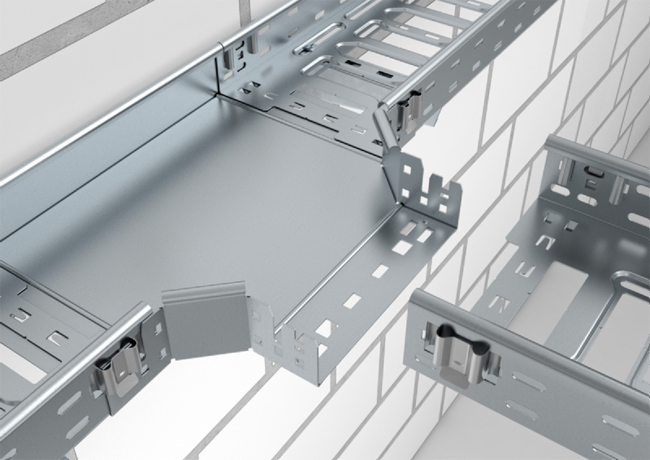

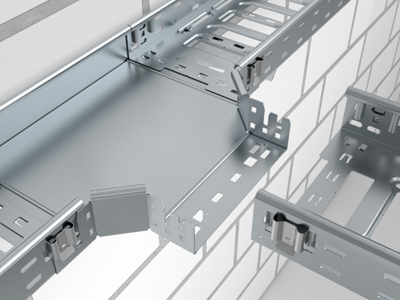

‘ T ’ Bend
‘ T ’ Bend – Perforated Type Is Suitable For Joining Cable Trays In Three Directions At 90 Degree Intervals In The Same Plane. Our Product Design Allows The Cable To Route Properly And Chamfer Of Bend Take Care Of Cable Not To Worn Out , Peel Off Or Get Damage While Laying Of Cables., Can Be Manufactured In Hot Dip Galvanized Finish(Galvanizing As Per Is-2626),Pre-Galvanized Finish(Material As Per Is-277),Powder Coating Finish(Powder Coating As Per Is-101),Stainless Steel Grade-As Per 316 , 304 & In Aluminium-Commercial Grade Finish.
Height Of ‘ T ’ Bend – Perforated Type Is Varies From 25,35,50,70,75,100 & 125 Mm , Width Of‘ T ’ Bend – Perforated Type Is Varies From 100 To 1000 Mm ,Thickness Of‘ T ’ Bend – Perforated Type Ranging From 10,12,14,16,18 Swg, I.E 3,2.5,2,1.6,1.2 Mm

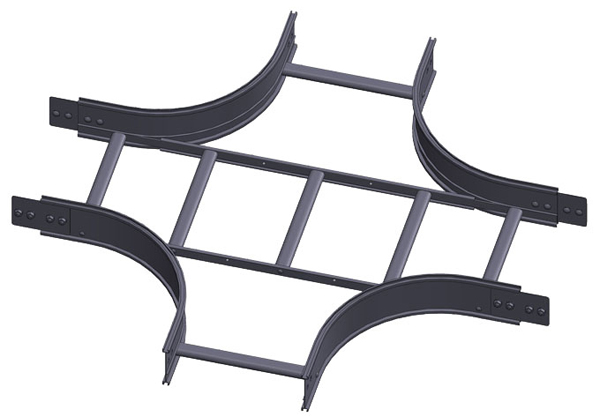

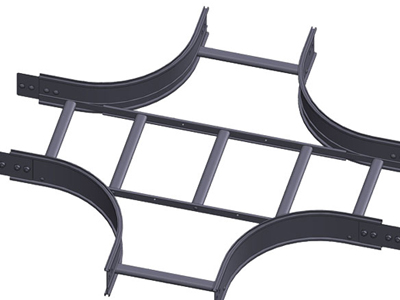

Cross Bend
Cross Bend-Perforated Type Are Mainly Use For Laying The Cable Horizontally Which Allows The Cable To Route From Four End , Our Product Design Allows The Cable To Route Properly And Chamfer Of Bend Take Care Of Cable Not To Worn Out , Peel Off Or Get Damage While Laying Of Cables.
Cross Bend-Perforated Type Can Be Manufactured In Hot Dip Galvanized Finish(Galvanizing As Per Is-2626),Pre-Grade-As Per 316 , 304 & In Aluminium-Commercial Grade Finish.
Height Of Cross Bend-Perforated Type Is Varies From 25,35,50,70,75,100 & 125 Mm , Width Of Cross Bend-Perforated Type Is Varies From 100 To 1000 Mm ,Thickness Of Cross Bend-Perforated Type Ranging From 10,12,14,16,18 Swg, I.E 3,2.5,2,1.6,1.2 Mm

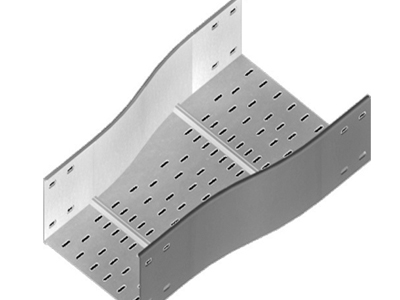

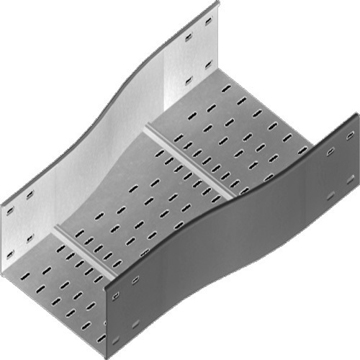

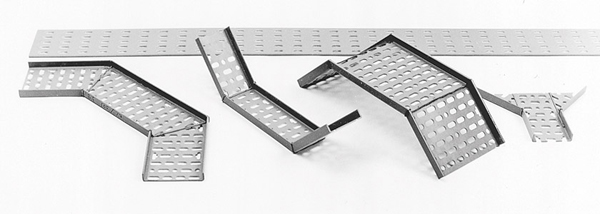

Reducer Central
Reducer Central - Perforated Type Are Mainly Used In Combination With Perforated Type Of Cable Trays To Route The Cable Where Cable Tray Is Suitable For Joining Cable Trays Of Different Widths In The Same Plane. Reducer Central - Perforated Type Has Two Symmetrical Offset Sides .
Our Product Design Allows The Cable To Route Properly And Chamfer Of Bend Take Care Of Cable Not To Worn Out,Peel Off Or Get Damage While Laying Of Cable.
Reducer Central-Perforated Type Can Be Manufactured In Hot Dip Galvanized Finish(Galvanizing As Per Is-2626),Pre-Galvanized Finish(Material As Per Is-277),Powder Coating Finish(Powder Coating As Per Is-101),Stainless Steel Grade-As Per 316 , 304 & In Aluminium-Commercial Grade Finish.
Height Of Reducer Central - Perforated Type Is Varies From 25,35,50,70,75,100 & 125 Mm , Width Of Reducer Central - Perforated TypeIs Varies From 100 To 1000 Mm ,Thickness Of Reducer Central - Perforated Type Ranging From 10,12,14,16,18 Swg, I.E 3,2.5,2,1.6,1.2 Mm

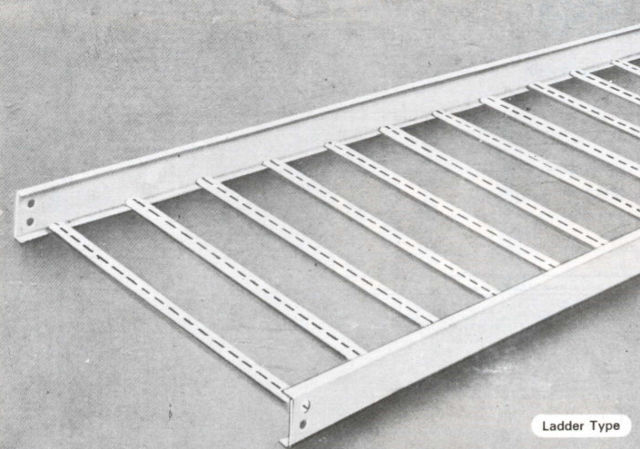

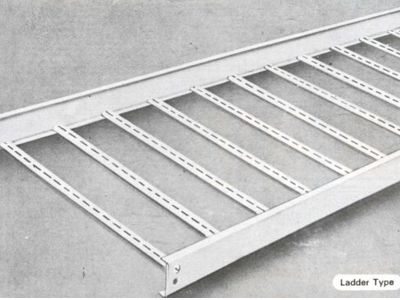

Cable Trays - Ladder Type
Cable Tray - Ladder Type are ideal to install large volume of Heavy duty power cables. Perforation make full free air rating of cable ,Higher current flow can be achieved at the same cross section , Overheating and consecutive damaging of cable is avoided ,coupler holes in side guarantees easy connecting of cable trays to each other ,Cable trays can be manufactured in Hot Dip Galvanized Finish(Galvanizing As Per Is-2626),Pre-Galvanized Finish(Material As Per Is-277),Powder Coating Finish(Powder Coating As Per Is-101),Stainless Steel Grade-As Per 316 , 304 & In Aluminium-Commercial Grade Finish.
Height of cable trays is varies from 25,35,50,70,75,100 & 125 mm , Wdth of cable trays is varies from 100 to 1000 mm ,Thickness of cable trays ranging from 10,12,14,16,18 SWG, i.e 3,2.5,2,1.6,1.2 mm

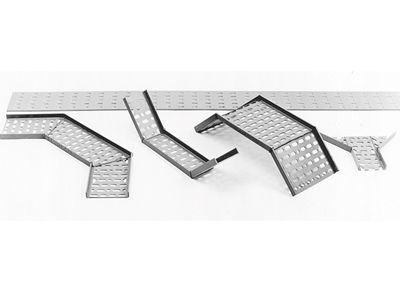

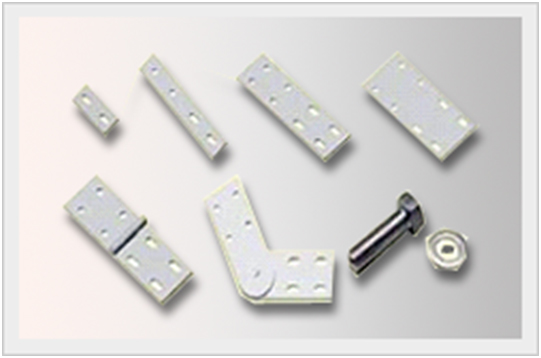

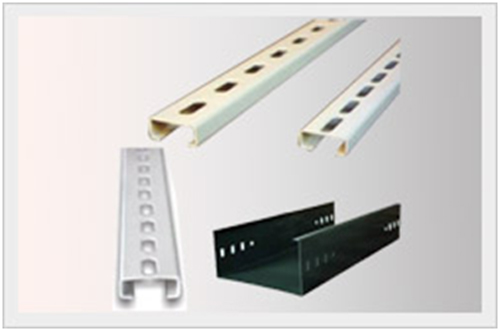

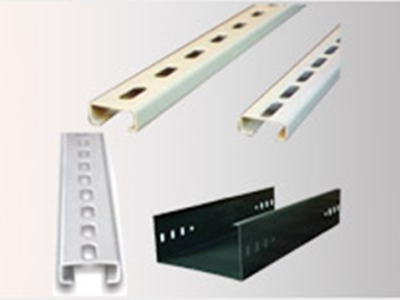

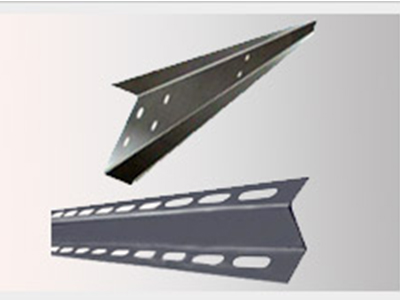

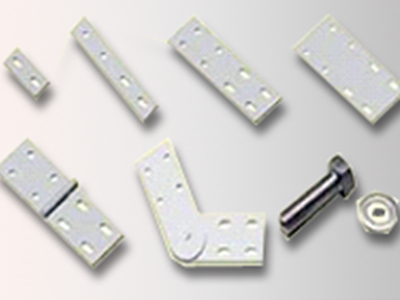

CABLE TRAY ACCESSORIES
Cable Tray Accessories such as Horizontal Bend Tray, Horizontal Bend Type Tray, Cable Tray Reducer and Vertical Bend Cable Support.
These Accessories available in different sizes as per demand of customer. We manufacture Vertical, Horizontal Bend, elbow, Tee and cross for Perforated Cable Trays for standard support. Quality - Bends are tested for quality on all stages of production. Our products are known for their quality, easy installation and longer functional life.
